Product parameters
1.emitter: XP-L LED, with lifespan of 100,000 hours
2.CCT Range: 6000K-6500K
3.Voltage: 2.8-6 Volts
4.Battery used: 2*CR123A Lithium manganese battery(This product is not designed to use rechargeable CR123 cells) or 1* 18650 3.7 Volts Li-ion lithium battery (not included in package)
5.Size: 37mm(head) *137mm(length) 1.1 in(head) *4.1in(length)
6.Weight: 0.32lb, excluding battery /149gram, excluding battery
7.Light Cup: smooth reflector
8.Toughened glass lens with AR coating
9.Premium type Ⅲ hard-anodized anti-abrasive finish and better heat exchange
GENERAL OPERATION
switch with momentary operation (light press or tap) and constant on operation (press until click). The light is shipped from the factory in the default High-Strobe program.
• High: Tap and hold; click to lock on; click again for off.
• Strobe: Fast double-tap (within 0.3 seconds) and hold; click to lock on; click again for off.
Accessing Other Programs
Allowing the user to select one of three different programs. To change to the next program, starting from the “Off” position, tap the switch rapidly 9 times (within 0.3 seconds per tap) and hold it down the 10th time. Continue holding the switch until the light turns off (approximately 1 second), then release the switch.
Available programs are High-Strobe (Factory Default), High Only or Low-High.
NOTE: The operation of the light and function is exactly the same whether you are using the standard tail cap switch or the corded remote switch.

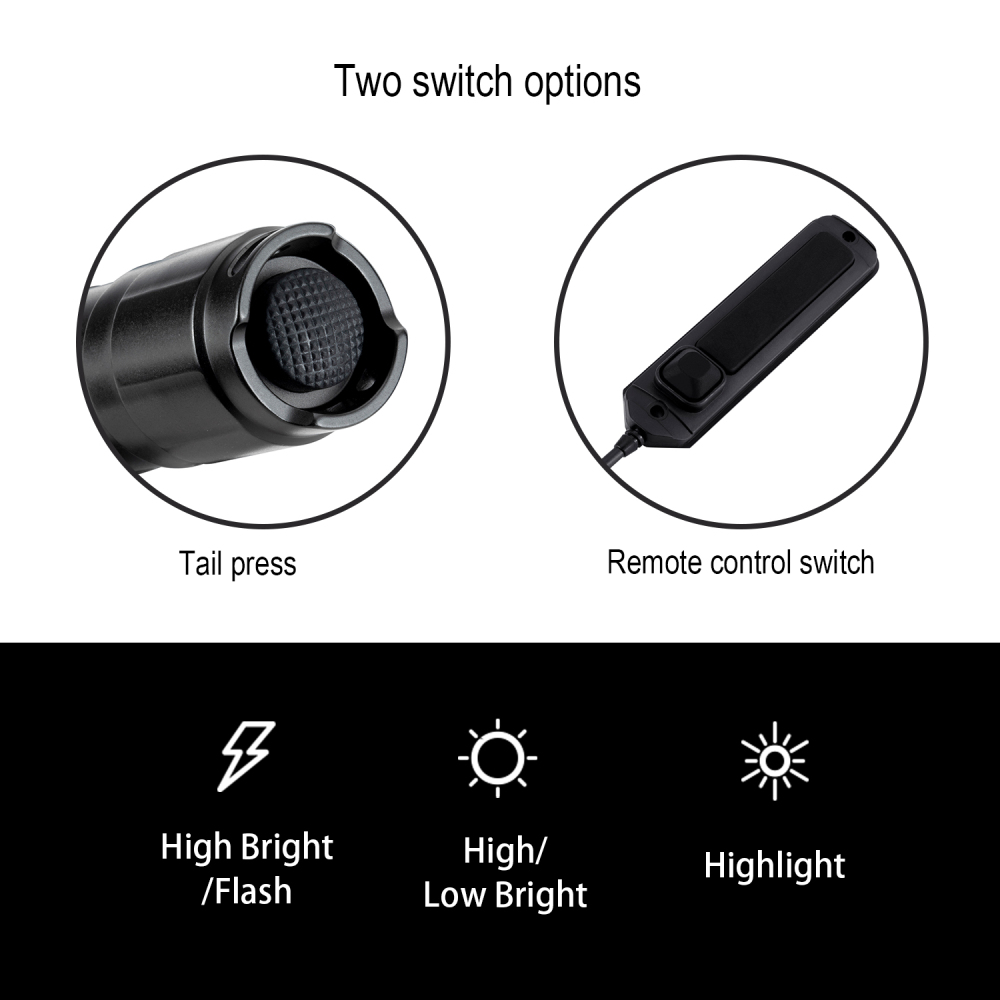

Remote Switch You can operate the light and function using the front momentary/locking switch or the long momentary pressure switch.
Note: Once the front click switch is locked on, the momentary pressure switch is disabled.

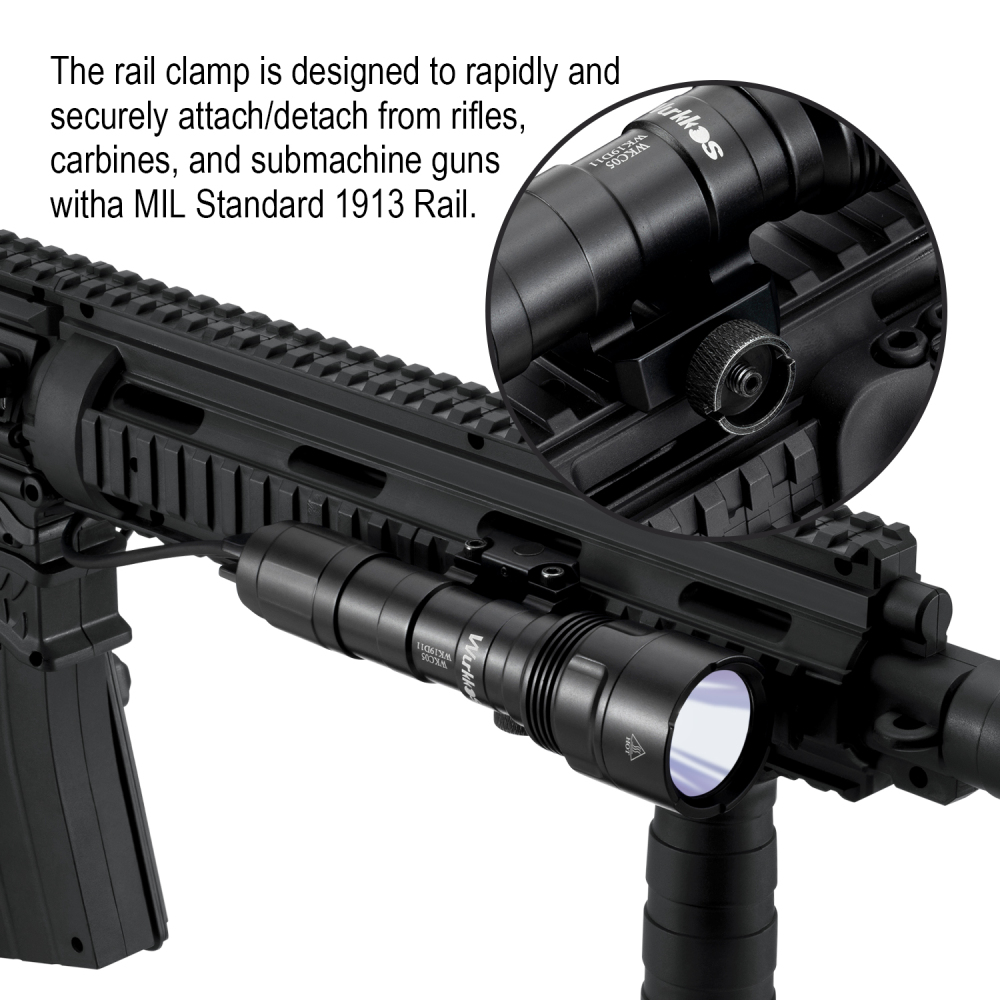

MOUNTING The rail clamp is designed to rapidly and securely attach/detach from rifles, carbines and sub machine guns with a MIL Standard 1913 Rail. Rotate the thumb wheel until the clamp is fully open. Slip the clamp over the 1913 rail of the weapon and retighten the thumb wheel securely.
